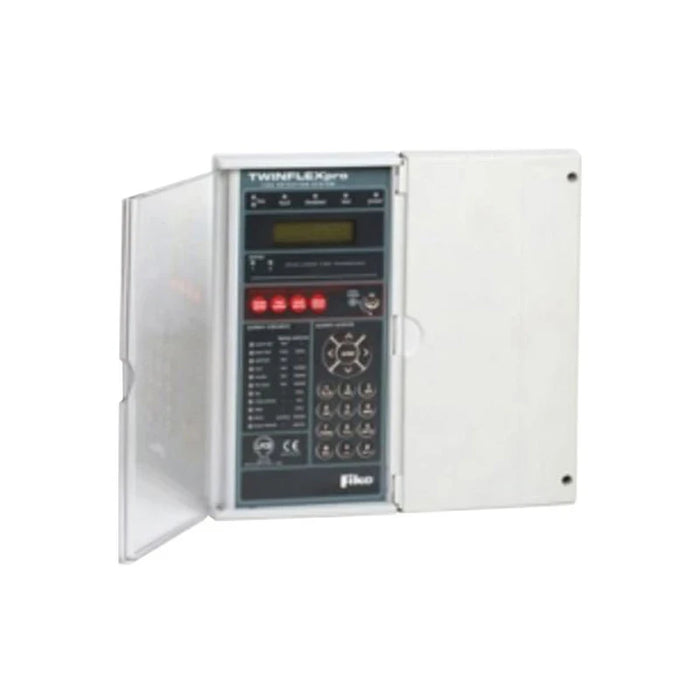

Twinflex Pro 4 Zone Panel

The Twinflex Pro 4 Zone Panel is a cutting-edge, intelligent 2-wire fire alarm control panel, designed for simplicity, reliability, and flexibility in small to medium-sized buildings. Supporting up to 32 Twinflex devices per zone, this analogue non-addressable panel streamlines installation by allowing detectors, call points, and sounders to be installed on the same cable. Perfect for schools, offices, retail spaces, and other commercial environments, the Twinflex Pro automatically distinguishes between smoke detectors, heat detectors, and manual call points, reducing false alarms and increasing system accuracy.

Equipped with fault monitoring, flexible inputs/outputs, and an integral power supply, the Twinflex Pro 4 Zone is a robust fire safety solution that meets modern building safety needs.

Technical Specifications

• Download Product Technical Data Sheet

• Panel Type:

  • Analogue non-addressable

  • Intelligent 2-wire configuration

  • 4 zones, supporting up to 32 devices per zone

• Installation & Device Support:

  • Supports up to 32 Twinflex devices per circuit

  • All devices (detectors, sounders, call points) can be installed on the same cable

  • Simplifies installation and reduces cabling costs

• Monitoring & Fault Detection:

  • Automatically identifies smoke detectors, heat detectors, and manual call points

  • Monitors each zone for:

    • Detector head removal

    • Device fault

    • End-of-line fault

    • Open or short circuit fault

• Inputs & Outputs:

  • 2 monitored outputs (configurable as conventional sounder circuits)

  • Volt-free common fire relay and common fault relay

  • 2 multifunction latching/non-latching inputs

  • 1 programmable monitored input (e.g. Class-Change, Remote Fire)

• Power Supply & Battery Backup:

  • Includes integral power supply unit

  • Requires 2 x 12V 3.2Ah batteries (not included)

  • Provides up to 72-hour standby time

The Twinflex Pro 4 Zone Panel delivers an ideal mix of intelligent detection, simplified wiring, and reliable performance—making it a top choice for professional fire safety installations.
