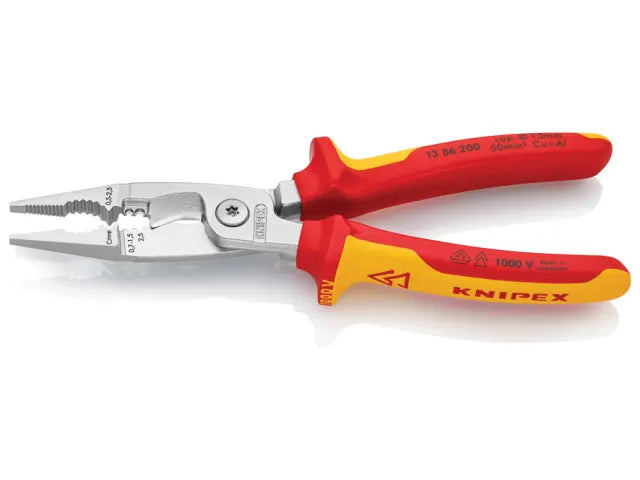

VDE Multifunctional Installation Pliers 200mm

The Knipex VDE Multifunctional Installation Pliers 200mm are a versatile professional tool designed to perform multiple electrical installation tasks with one compact solution. VDE tested up to 10,000V and safe for work up to 1,000V, these pliers conform to DIN EN / IEC 60900, making them ideal for electricians working on live electrical systems.

Manufactured from forged vanadium electric steel and multi-stage oil-hardened, the pliers deliver exceptional strength, durability and reliability. The chrome plated finish provides corrosion resistance, while the slim head design allows easy access in confined areas such as junction boxes and control panels. A bolted joint with zero backlash operation ensures precise and smooth handling during use.

Designed as a true 6-in-1 electrical installation tool, these pliers combine gripping, cutting, stripping and crimping functions in a single tool. Smooth gripping surfaces near the tips allow delicate handling of individual conductors, while serrated gripping surfaces and a pipe grip handle flat and round materials securely. The tool also features precision stripping holes, a crimp die for wire-end ferrules and induction-hardened cable shears capable of cutting copper and aluminium cables up to 5 x 2.5mm² or 15mm diameter.

An intelligent latching mechanism with spring assistance allows gripping without fully opening the pliers while keeping the cutting edge closed and protected. These multifunction pliers provide electricians with a compact, efficient solution for installation work.

Technical Specification

Download Product Technical Data Sheet

• Product Type: VDE Multifunctional Installation Pliers
• Model: Knipex 13 86 200
• Length: 200mm
• VDE Tested: Up to 10,000V
• Safe Working Voltage: 1,000V AC
• Standard: DIN EN / IEC 60900
• Material: Vanadium Electric Steel
• Manufacturing Process: Forged, Multi-Stage Oil-Hardened
• Finish: Chrome Plated
• Joint Type: Precision Bolted Joint (Zero Backlash)
• Functions: 6-in-1 Multi-Function Tool

Functions Included:
• Smooth gripping surfaces for single cores
• Serrated gripping surfaces and pipe grip for flat and round materials
• Outside jaw edge for junction box work and deburring feed-through holes

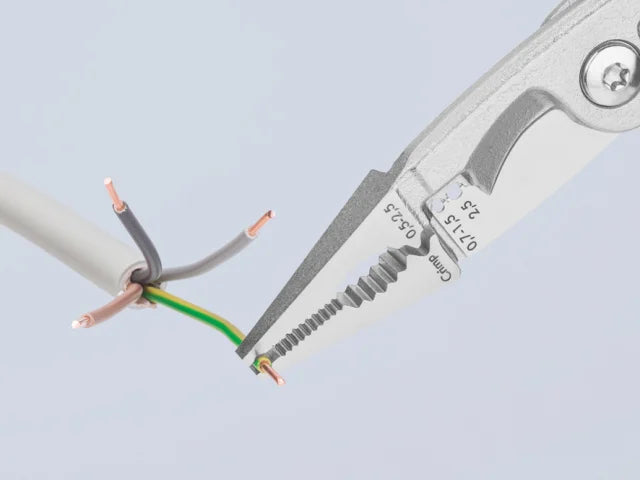

• Stripping holes for conductors 0.75 – 1.5mm² and 2.5mm²

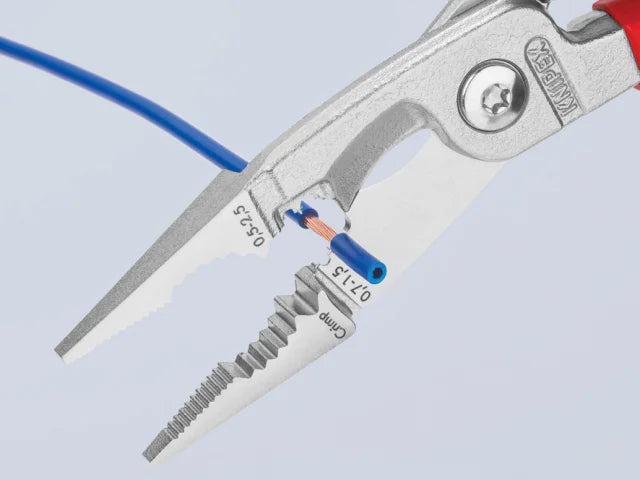

• Crimp die for wire-end ferrules 0.5 – 2.5mm²

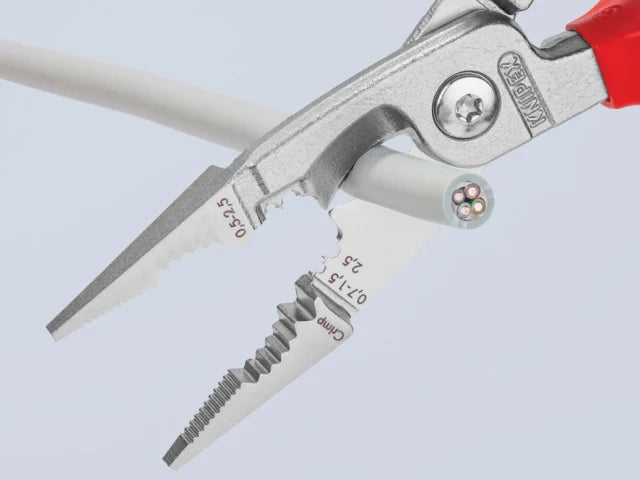

• Cable shears for copper and aluminium cables up to 5 x 2.5mm² / Ø15mm

• Handle Type: Multi-Component VDE Insulated Grips
• Barcode: 4003773075288
• Manufacturer Code: 13 86 200 SB
• Stock Code: KPX1386200
• Product Weight: 0.300kg
• Box Quantity: 1
