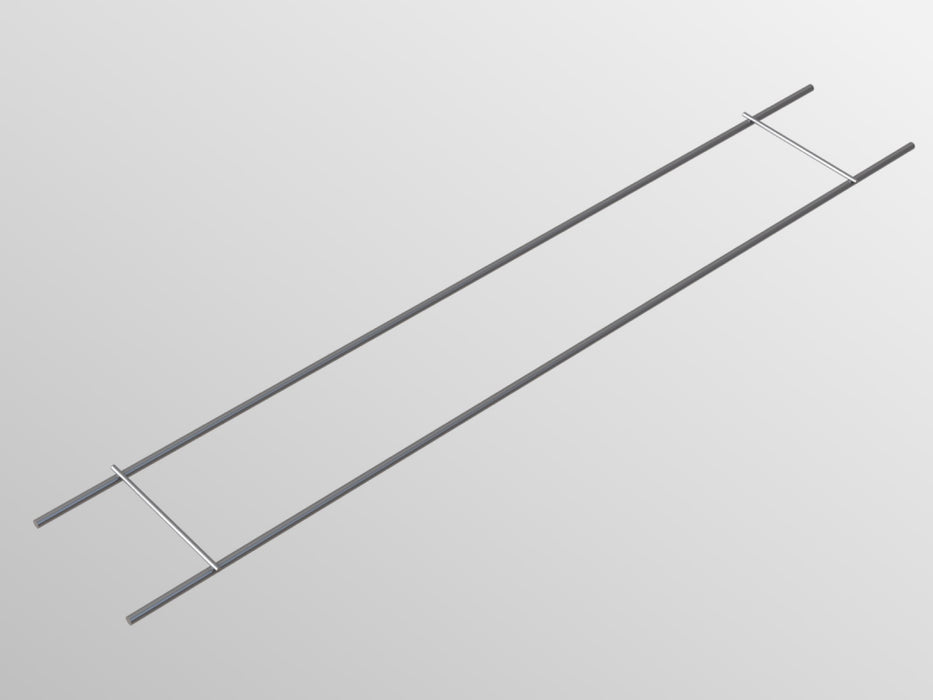

VW Vista Weld

The VW Vista Weld is a high-performance welded ladder-type Bed Joint Reinforcement system, designed to provide enhanced structural support and effective crack control in masonry construction. Featuring robust 3.6mm outer wires, this reinforcement is ideal for both load-bearing applications and general wall stability. VW Vista Weld is available in a variety of widths to suit different brick and block sizes, ensuring versatility across a wide range of building projects. Manufactured in either stainless steel or galvanised steel, it delivers long-term durability and reliability for both residential and commercial structures.

Technical Specification

• Data Sheet
• Technical Drawing
• DOP
• DOP
• DOP
• Design: Vista Weld is a welded ladder type Bed Joint Reinforcement with 3.5mm outer wires, generally used as a structural product, also ideal for crack control.
• Material: Manufactured from grade 304 S15 stainless steel. Also available in galvanised.
• Behaviour in relation to fire: Non combustible (as defined in the national Building Regulations).
• Durability: Excellent corrosion resistance and a service life of not less than 60 years.
• Compliance: Vista Masonry Reinforcement conforms to BS 5628 : Part 2 2000.
• Specification: Available for specification on the NBS Source platform.
