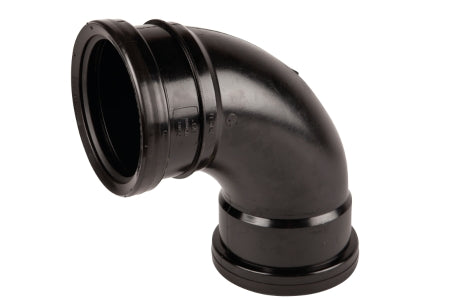

Wavin OsmaSoil D/S tight radius bend 87.5° 110m black

The Wavin OsmaSoil D/S tight radius bend 87.5° 110mm black is a high-quality soil system fitting designed for reliable performance in above-ground drainage and ventilation. Featuring push-fit ring-seal sockets at both ends, it allows for easy installation and a secure connection. Incorporating Wavin’s captive seal technology, the seals remain firmly in place during fitting, ensuring a watertight joint and long-lasting durability. This tight radius bend is ideal for sanitary waste systems where precision and reliability are essential.

Technical Specification

• Range Description: Osma Above Ground
• Range: Wavin OsmaSoil
• Brand Name: Wavin
• Country Origin: United Kingdom
• Manufacturer Model No: 4S561B
• Made To Order: N
• Depth: 145 mm
• Diameter: 110 mm
• Height: 237 mm
• Length: 264 mm
• Width: 145 mm
• Inlet Size: 110 mm
• Maximum Diameter: 110 mm
• Minimum Diameter: 110 mm
• Angle: 87.5°
• Material: PVC-U
• Colour: Black
• Type: Bend
• Years Guaranteed: 1
• Certifications Met: BS EN 1329-1:2000
• Push-fit 87.5° tight radius bend
• Ring-Seal sockets at both ends
• Wavin Osma 110 and 160mm fittings incorporate captive seal technology
• Seals cannot dislodge during fitting
• A more secure installation for peace of mind
• Kitemarked to BS EN 1329-1:2000
