White General Purpose 2:1 Heat Shrink Tubing Mini Reel
excl. VAT
💳 0% APR Finance Available*
Our White General Purpose 2:1 Heat Shrink Tubing Mini Reel is a versatile, flexible solution designed for reliable insulation and clean bundling of wires and cables. Made from durable polyolefin, it offers excellent electrical and physical properties, making it ideal for wire harnesses, machinery, and a wide range of general manufacturing applications. With a consistent 2:1 shrink ratio and a smooth, professional finish, this heatshrink tubing ensures long-lasting performance and easy installation. Datasheets are available upon request.

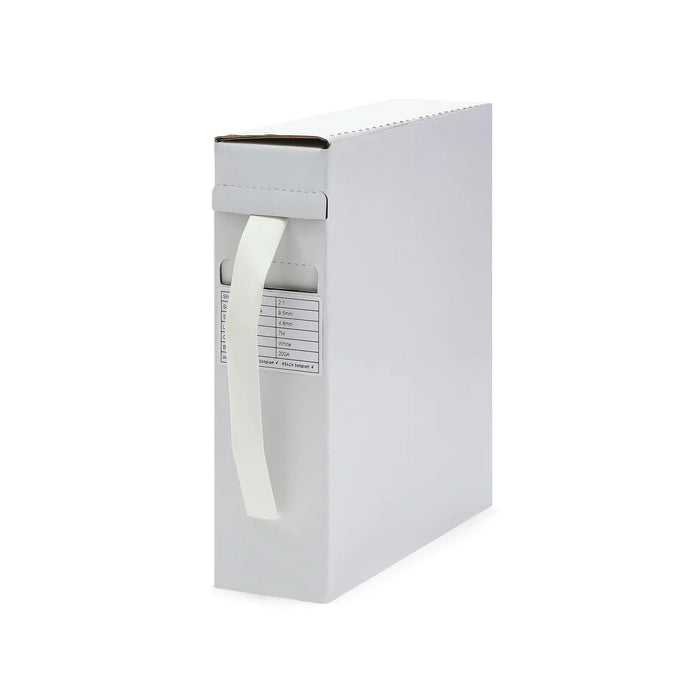

Please note: 4.8mm diameter and smaller is supplied round, while 6.4mm diameter and above is supplied flat as pictured.
Technical Specification
• Material: Polyolefin
• Shrink Ratio: 2:1
• Lining: Non-adhesive
• Working Temperature: -55°C to +125°C
• Shrink Temperature: 90°C
• Pre-shrink Diameter: 1.2mm – 25.4mm
• Post-shrink Diameter: 0.6mm – 12.7mm
• Pre-shrink Lay-flat Width: 1.9mm – 40mm
• Colour: White
• Reel Length: 4m – 15m
• Dielectric Voltage Withstand: 2500V, 60 seconds, no breakdown
• Flammability: VW-1
• Approvals: UL Approved, RoHS Compliant, Zero Halogen
