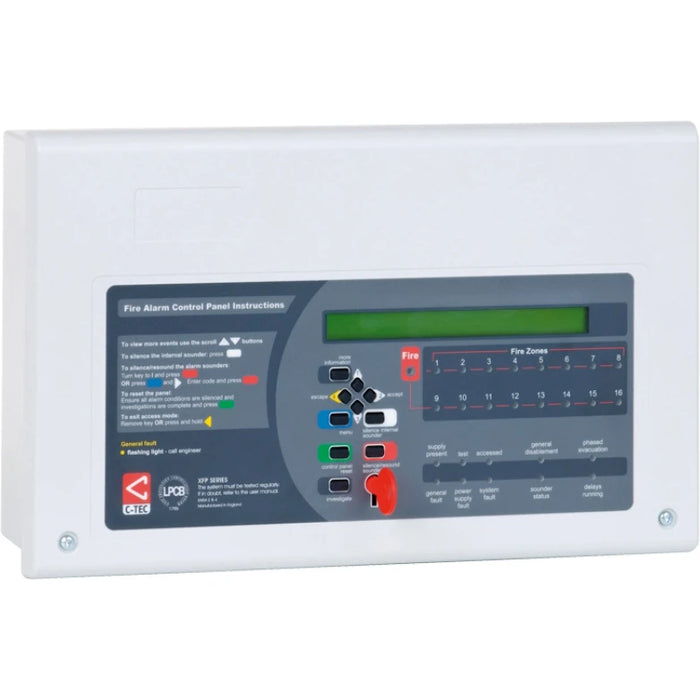

XFP 16 Zone Repeater Panel (All Protocols)

remote locations across your site, such as fire service entrances and other critical access points. This repeater panel replicates all the functions and controls of the main panel, including access levels 1, 2, and 3, ensuring seamless and convenient management of your fire alarm system from multiple locations. Equipped with an on-board fault relay, the repeater panel enhances system monitoring and fault reporting. It requires a dedicated mains power supply and battery backup for reliable operation. Up to eight XFP Repeaters can be connected to one non-networked XFP Main panel, communicating through a CFP761 network driver card for smooth data transmission. The repeater network is wired using fire-resistant screened cables, supporting network lengths of up to 500 meters.

Technical Specification

• Download Product Technical Data Sheet

• Download Product Technical Data Sheet

• Download Product Technical Data Sheet

• Fully repeats all functions and controls of XFP Main panel (access levels 1, 2, 3)

• Suitable for remote site locations including all potential fire service entrances

• Includes on-board fault relay for enhanced monitoring

• Requires dedicated mains power and battery backup supply

• Supports connection of up to eight XFP Repeaters per non-networked XFP Main panel

• Communication via CFP761 network driver card (standard in all XFP510-16s, optional for main panels)

• Wired with 1.5 mm² two-core screened fire-resistant cable

• Maximum network cable length: 500 meters

Upgrade your fire alarm system coverage with the XFP 16 Zone Repeater Panel, providing remote control and monitoring with full functionality and robust fault detection.
