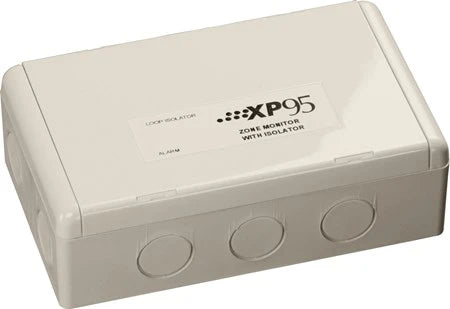

Xp95 Zone Monitor Module Isolating

The XP95 Zone Monitor Module with Isolator is designed to seamlessly integrate up to 20 Apollo Series 65, Orbis, or equivalent conventional fire detectors into addressable fire alarm systems. Fully compatible with XP95 and Discovery protocols, this module allows for efficient system expansion and flexible installation. Certified to EN 54-17 and EN 54-18, the device ensures reliable performance and system safety. Its built-in isolator protects against short circuits, and the IP54 rating makes it suitable for semi-flush or surface mounting in challenging environments.

Technical Specification

• Download Product Technical Data Sheet

• Certification: EN 54-17 & EN 54-18

• Compatibility: Apollo Series 65, Orbis, XP95, and Discovery systems

• Max. Detectors per Zone: 20

• Mounting Method: Suitable for semi-flush or surface mounting

• Power-Up Time: Maximum 150ms

• IP Rating: IP54

• Function: Converts conventional zone into addressable loop

• Isolating Feature: Yes, integrated short-circuit isolator
