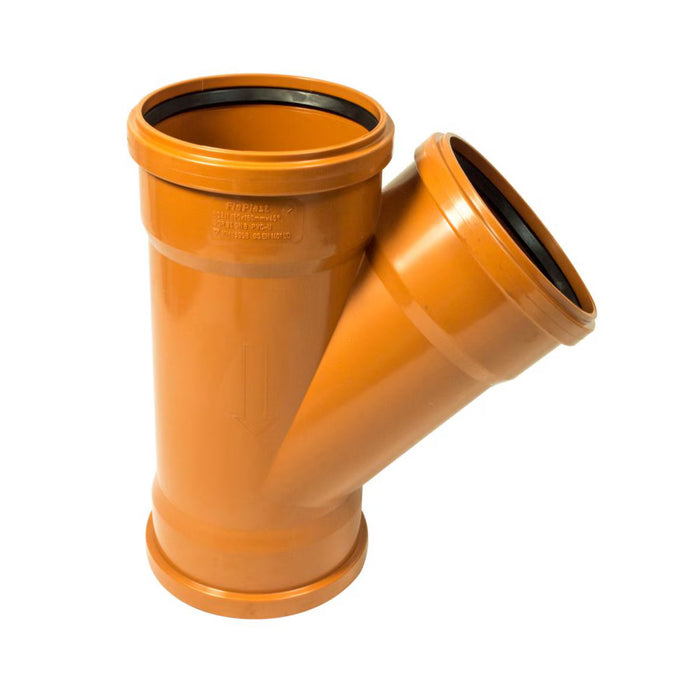

Y Branch Triple Socket 160mm

Our FloPlast Y Branch Triple Socket (160mm) is an underground drainage fitting designed to connect three 160mm pipes at an angled junction—typically 45°—to promote smoother flow and reduce the risk of blockages. This high-capacity Y branch is ideal for use in domestic gravity drainage and sewage systems up to 10 metres deep. Manufactured in the UK using robust PVC-U, the unit incorporates push-fit sockets with elastomeric seals and a snap-cap system, allowing for fast, secure, and leak-proof installation.

Key Features

• Triple socket design enables 3-way pipe connection for 160mm systems
• Y-shaped angle (typically 45°) allows for smoother flow than 90° T-junctions
• Made from durable PVC-U, offering long-term performance and resistance to corrosion
• Push-fit connection system with integrated rubber seals and snap-cap for ease of use
• Compatible with all FloPlast 160mm underground drainage products
• Suitable for gravity-fed domestic drainage and sewage installations
• Fully meets British Standard specifications

Technical Specifications

• Pipe Size Compatibility: 160mm
• Material: PVC-U
• Colour: Terracotta/Brown
• Connection Type: Push-fit with rubber seal and snap-cap
• Width: 340 mm
• Length: 183 mm
• Height: 382 mm
• Weight: 2.06 kg
• Max Installation Depth: Up to 10 metres
• Seal Type: Elastomeric synthetic rubber
• Manufactured In: United Kingdom
