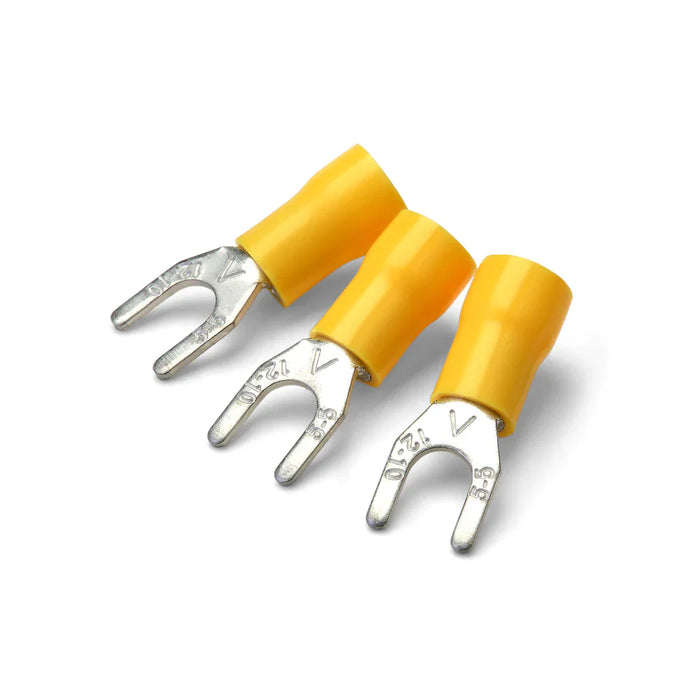

Yellow Fork Terminal - Insulated - Pack of 100
excl. VAT
💳 0% APR Finance Available*
Our Yellow Fork Terminal – Insulated (Pack of 100) provides a strong, reliable, and high-performance connection solution for electrical, automotive, and industrial applications. These insulated yellow crimp fork terminals are manufactured from high-quality copper with electro-tin plating to deliver excellent conductivity, corrosion resistance, and long-lasting durability. Ideal for electrical manufacturing, wire harness assembly, and professional installation work, they ensure secure and easy-to-fit terminations. Technical datasheets are available upon request.
Technical Specification
• Type: PVC Insulated Fork Terminal
• Insulation Colour: Yellow
• Wire Size: 4mm² – 6mm²
• Stud Size Options: 3.7mm, 4.3mm, 5.3mm, 6.5mm
• Terminal Material: Copper with Electro-Tin Plating (PVC)
• Pack Size: 100pcs
• Maximum Operating Temperature: 75°C
• Maximum Electrical Rating: 600V Max
• RoHS Compliant
• Halogen Free
• REACH Compliant
• Size Breakdown:
3.5mm – Wire Size 4mm²–6mm², Stud Size 3.7mm
4mm – Wire Size 4mm²–6mm², Stud Size 4.3mm
5mm – Wire Size 4mm²–6mm², Stud Size 5.3mm
6mm – Wire Size 4mm²–6mm², Stud Size 6.5mm
