Yellow General Purpose 2:1 Heat Shrink Tubing Mini Reel
excl. VAT
💳 0% APR Finance Available*

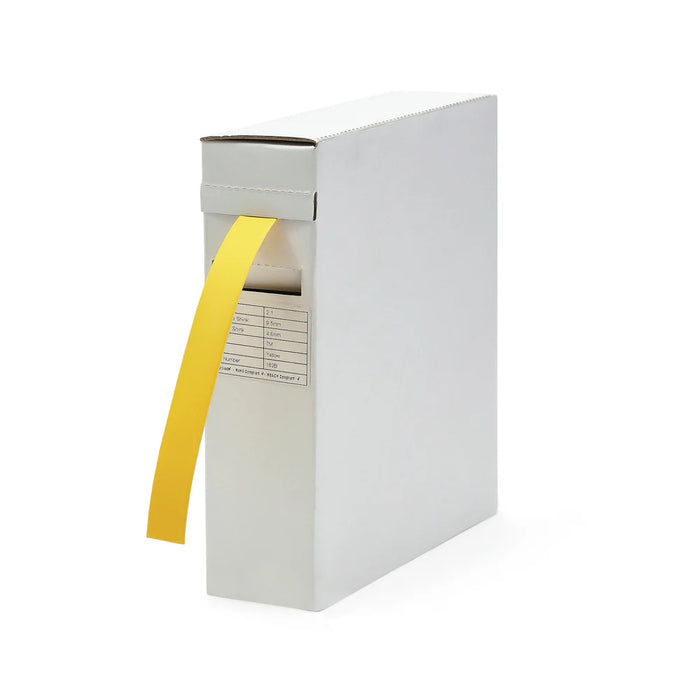

Our Yellow General Purpose 2:1 Heat Shrink Tubing Mini Reel provides a flexible, reliable solution for insulating or bundling wires and cables across a wide range of applications. Manufactured from high-quality polyolefin, it offers excellent electrical and physical performance, making it ideal for wire harnesses, machinery, and general manufacturing environments. The 2:1 shrink ratio ensures a secure fit and clean finish, while the vibrant yellow colour enhances visibility for identification and safety. Datasheets are available upon request. Please note: 4.8mm diameter and smaller is supplied round, while 6.4mm diameter and above is supplied flat as pictured.
Technical Specification
• Material: Polyolefin
• Shrink Ratio: 2:1
• Lining: Non-adhesive
• Working Temperature: -55°C to +125°C
• Shrink Temperature: 90°C
• Pre-shrink Diameter: 1.2mm – 25.4mm
• Post-shrink Diameter: 0.6mm – 12.7mm
• Pre-shrink Lay-flat Width: 1.9mm – 40mm
• Colour: Yellow
• Reel Length: 4m – 15m
• Dielectric Voltage Withstand: 2500V, 60 seconds, no breakdown
• Flammability: VW-1
• Approvals: UL Approved, RoHS Compliant, Zero Halogen
